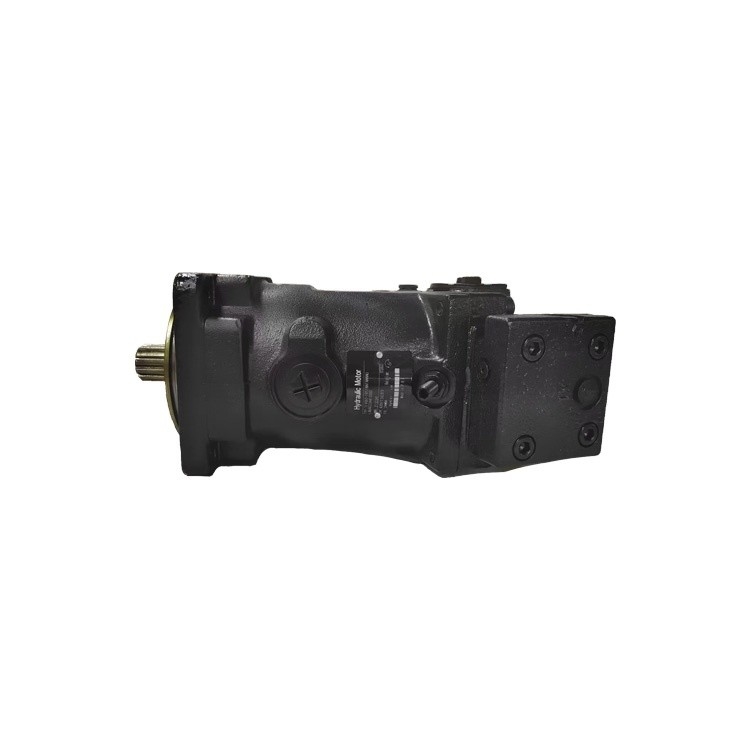

492 Kw Sauer 51V 51V060-1RS1NN1 pump standard structure
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $1,876.00/sets 1-4 sets |
|
Detail Information |
|||
| Pressure: | Hydraulics | Structure: | Standard |
|---|---|---|---|
| Weight: | 44 | Power: | 492 Kw |
| Dimension(L*W*H): | Standard | Warranty: | 1 Year |
| Showroom Location: | None | Motor Type: | Piston Motor |
| Displacement: | 145cm³ | Application: | Industrial Machinery |
| Color: | Customer's Request | Material: | Cast Iron |
| After-sales Service Provided: | Engineers | Standard Or Nonstandard: | Standanrd |
| Payment: | T/T | Feature: | High Efficiency High Pressure |
| MOQ: | 1 Set | Series: | 51V |
| After Warranty Service: | Video Technical Support | ||
Product Description
Product Description
General Description:
---Series 51 Variable Displacement Motors are bent axis design units, incorporating spherical pistons.
---These motors are designed primarily to be combined with other products in closed circuit systems to transfer and control hydraulic power. ---Series 51 Motors have a large maximum / minimum displacement ratio (5 to 1) and high output speed capabilities. SAE flange and cartridge motor configurations are available.
---A complete family of controls and regulators is available to fulfill the requirements of a wide range of applications.
---The controls may utilize externally or internally supplied servo pressure. They may be overridden by a pressure compensator which functions when the motor is operating in motor and pump modes. A defeat option is available to disable the pressure compensator override when the motor is running in pump mode. ---The pressure compensator option features a low pressure rise (short ramp) to provide optimal power utilization throughout the entire displacement range of the motor. The pressure compensator is also available as a stand-alone regulator.
|
Displacement (cc)
|
109.9
|
|
Continuous speed (rpm)
|
2800
|
|
Max. continuous flow(L/min)
|
308
|
|
Theoretical torque(Nm / bar)
|
1.75
|
Detailed Images
Size Information
Technical Specifications and Data :
|
Model
|
51V060
|
51V080
|
51V110
|
|
Displacement(cc)
|
60.0
|
80.7
|
109.9
|
|
Continuous speed(rpm)
|
3600
|
3100
|
2800
|
