Standard Rexroth A2FE Hydraulic Motor A2FE107/61W-VZL181-K A2FE90 A2FE160 A2FE125 for Crane
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng hydraulic |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $560.00/sets |
|
Detail Information |
|||
| Pressure: | High Pressure | Structure: | Piston Motor |
|---|---|---|---|
| Weight: | 45 | Power: | Standard |
| Dimension(L*W*H): | Standard | Warranty: | 1 Year |
| Showroom Location: | None | Motor Type: | Piston Motor |
| Displacement: | 28cm³ | Product Name: | Hydraulic Motor |
| Material: | Cast Iron | Application: | Machinery |
| Color: | Black | Usage: | Hydraulic Drive Field |
| Standard Or Nonstandard: | Standard | Condition: | New |
| Type: | Hydraulic Motors | After-sales Service Provided: | Field Maintenance And Repair Service |
Product Description
Product Description
The A2FM/A2FE is a fixed motor with an axial tapered piston rotary group of bent-axis design for hydrostatic drives in open and closed circuits. For axial piston units with bent-axis design, the pistons are arranged at an angle to the drive shaft. The pistons rest directly on the drive shaft where they generate a pressure-dependent torque. In the open circuit, the hydraulic fluid flows from the reservoir to the hydraulic pump from where it is transported to the hydraulic motor. From the hydraulic motor, the hydraulic fluid flows directly back to the reservoir. The output direction of rotation of the hydraulic motor can be changed with a directional valve. In the closed circuit, the hydraulic fluid flows from the hydraulic pump to the hydraulic motor and from there directly back to the hydraulic pump. The output direction of rotation of the hydraulic motor is changed, e.g., by reversing the flow direction in the hydraulic pump.
* Space-saving construction due to recessed mounting flange
* Easy to install, simply slide into the mechanical gearbox
* High power density
* Very high total efficiency
* High starting efficiency
* Optional with integrated pressure relief valve
* Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve
* Bent-axis design
* Easy to install, simply slide into the mechanical gearbox
* High power density
* Very high total efficiency
* High starting efficiency
* Optional with integrated pressure relief valve
* Optional with mounted addifitonal valve: counterbalance valve (BVD/BVE), flushing and boost-pressure valve
* Bent-axis design

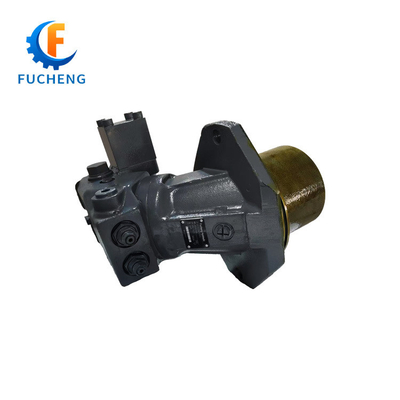

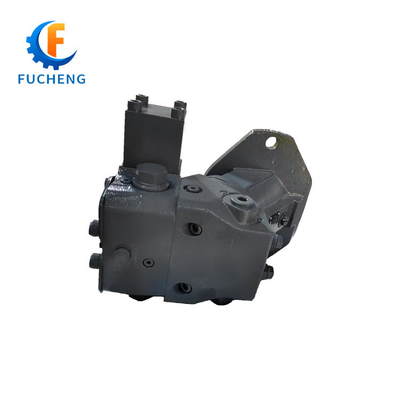

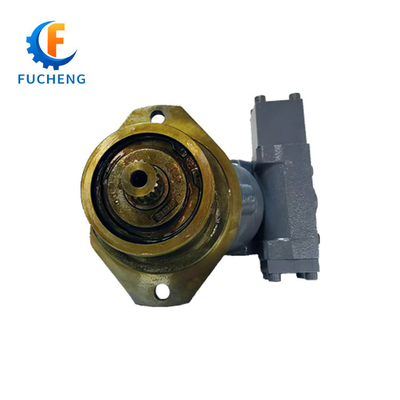

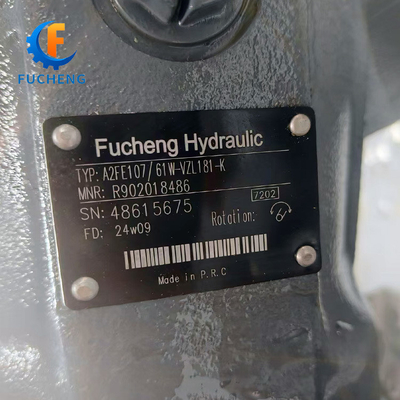

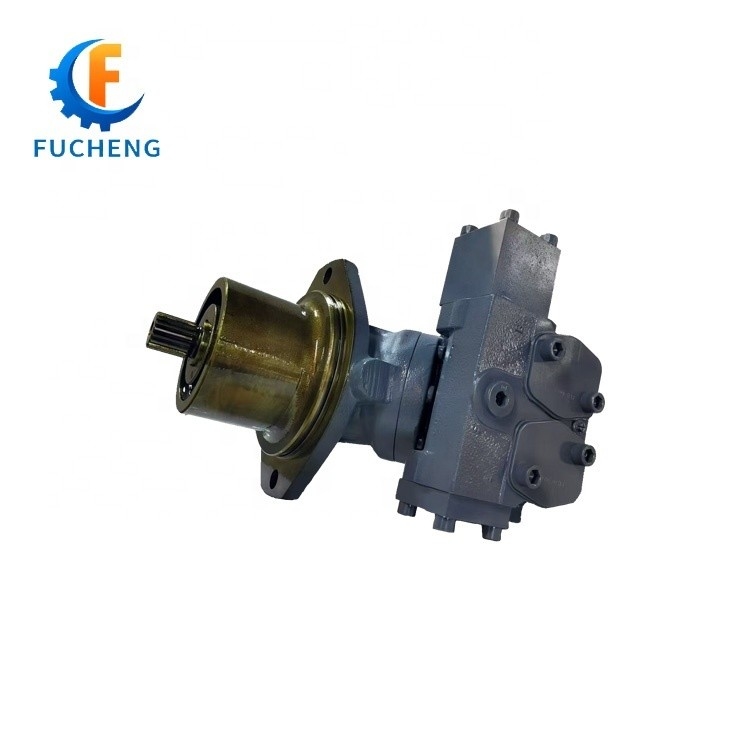

Detailed Images
Size Information
size | 28 | 32 | 107 | 125 | 160 | 180 | 250 |
displacement | 28.1 | 32 | 106.7 | 125 | 160.4 | 180 | 250 |
max pressure | 450 | 450 | 450 | 450 | 450 | 400 | 400 |
inlet flow | 177 | 202 | 427 | 500 | 577 | 648 | 675 |
torque | 179 | 204 | 679 | 796 | 1021 | 1146 | 1393 |
