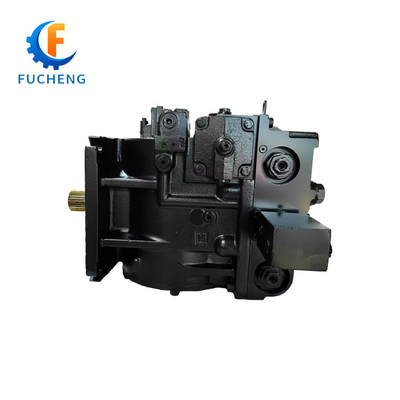

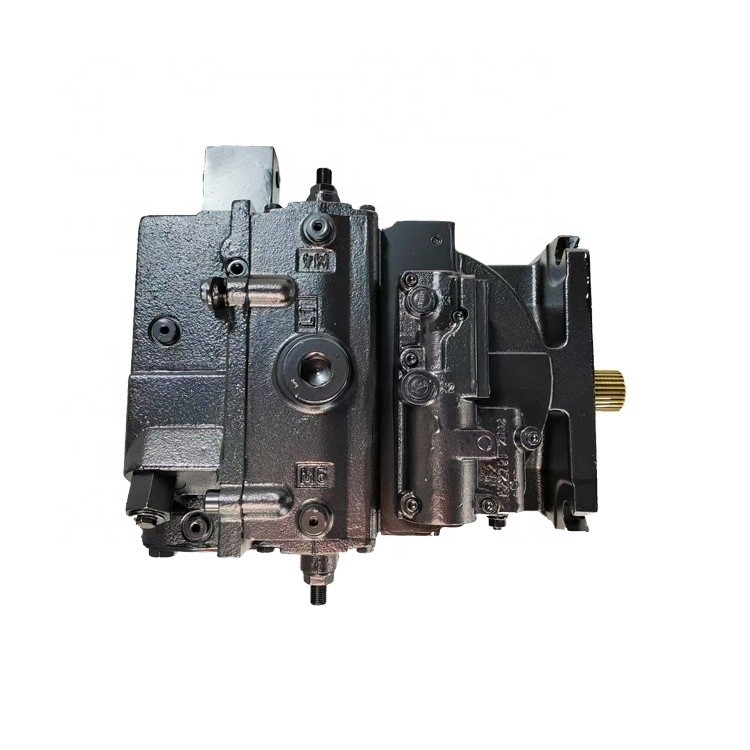

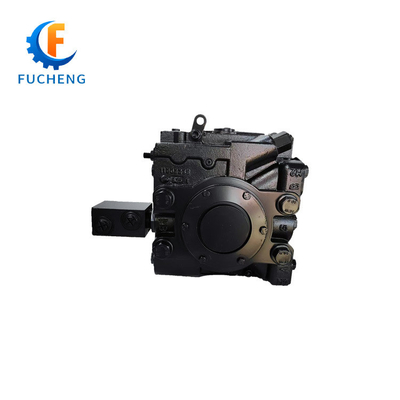

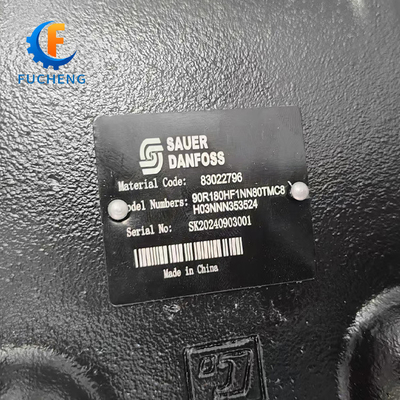

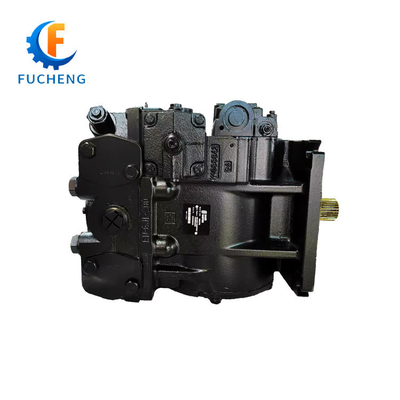

Hydraulic Accumulators Sauer Pump 90R180HF1NN80TMC8H03NNN353524
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $2,212.00/sets 1-44 sets |
|
Detail Information |
|||
| Condition: | New | Warranty: | 1 Year |
|---|---|---|---|
| Showroom Location: | None | Type: | Hydraulic Accumulators |
| Pressure: | Hydraulics | Structure: | Standard |
| Weight: | 68 | Power: | Standard |
| Dimension(L*W*H): | Standard | Product Name: | Hydraulic Pump |
| Feature: | High Efficiency | Application: | Construction Machinery |
| Material: | Cast Iron | Standard: | International Standard |
| Color: | Customer's Request | Standard Or Nonstandard: | Standanrd |
| Delivery Time: | Payment | MOQ: | 1 Pc |
| Payment: | T/T | ||
Product Description
Product Description
Series 90 hydrostatic pumps can be applied together or combined with other products in a system to transfer and control hydraulic power.They are intended for close circuit applications.
Series 90 pumps variable displacement pumps are compact,high power density units.All models utilize the parallel axial piston/slipper concept in conjunction with a tiltable swashplate to vary the pump's displacement.Reversing the angle of the swashplate reverses the flow of oil from the pump and thus reverses the direction of rotation of the motor output.
Series 90 pumps include an intergral charge pump to provide system replenishing and cooling oil flow,as
well as control fluid flow.They also feature a range of auxiliary mounting pads to accept auxiliary hydraulic pumps for use in complementary hydraulic systems.A complete family of control options is available to suit a variety of control systems(mechanical,hydraulics,electric)
--The Series 90 - Advanced Technology Today
---7 Sizes of Variable Displacement Pumps
--Efficient axial piston design
--Proven reliability and performance
--Compact,lightweight
|
Displacement (cc)
|
100
|
|
Input speed Minimum (rpm)
Rated (rpm)
Maximum(rpm)
|
500
3,300
3,650
|
|
Weight (Kg)
|
68
|
Detailed Images
Size Information
Table of values (theoretical values, without efficiency and tolerances; values rounded)
|
Size
|
90R042
|
90R055
|
90R075
|
90R100
|
90R130
|
|
Displacement (cc)
|
42
|
55
|
75
|
100
|
130
|
|
Flow at rated speed(L/min)
|
176
|
215
|
270
|
330
|
403
|
|
Input speed maximum (rpm)
|
4,600
|
4,250
|
3,950
|
3,650
|
3,400
|
Related Products
Packing&Shipping
Company Introduction
Jinan Fucheng Hydraulic Equipment CO., Ltd is a professional company integrated with manufacture, trade, and technical service for hydraulic product, we focus on good quality, better service, reasonable price and supply comprehensive proposal, including free maintenance and consultant. Our customers are from industries of mixer truck, underground loader, combine harvester, marine machinery, concrete pump truck, coal mine machinery, road paver, roller, harbor machinery, oil exploration machinery, rotary driller etc. Main business range: A10VSO, A4VSO, A7V0, A11VO, A4VG, A6VE, A2FE, A6VM, A2FM, A2FO, A6V, A7V, A8V etc.PV20-24,MF20-24,90R55,90R75,90R100,90M55,90M75,90M100 K3V63/112/140/180DT/DTP, K5V80/140/200DT/DTH Gear pump: 0PF1PF1.5PF2PF2.5APF3PF3.5APF constant gear pump, sundstrand pump, wood splitter pump, cater pump, PTO gear pump, and high precision shunt motor, multiple directional valves. Spare parts of Piston pump and motor: Bosch Rexroth, Kawasaki, Linde, SAUER, Eaton, Vikers, Komatsu, Cater etc.
FAQ
Q1: I want to buy your products, how can I pay? A :You can pay via T/T , WEST UNION or other payment terms we reach agreement. Q2: How can you guarantee the quality? A: One year's warranty against B/L date. Q3: If we don't find what we want on your website, what should we do? A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it. Q4: Can we buy 1 pc of each item for quality testing? A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing. Q5: What is the lead time? A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
Want to Know more details about this product
