Sauer MF Series Hydraulic Axiail Piston Motor High Pressure for Standard Structure
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $357.45/sets 1-14 sets |
|
Detail Information |
|||
| Pressure: | Hydraulics | Structure: | Standard |
|---|---|---|---|
| Weight: | 44 | Power: | 492 Kw |
| Dimension(L*W*H): | Standard | Warranty: | 1 Year |
| Showroom Location: | None | Motor Type: | Piston Motor |
| Displacement: | 125cm³ | Application: | Industrial Machinery |
| Color: | Customer's Request | Material: | Cast Iron |
| After-sales Service Provided: | Engineers | Standard Or Nonstandard: | Standanrd |
| Payment: | T/T | Delivery Time: | Payment |
| Feature: | High Efficiency High Pressure | MOQ: | 1 Set |
| Series: | 51V | ||
Product Description
Product Description
General Description：

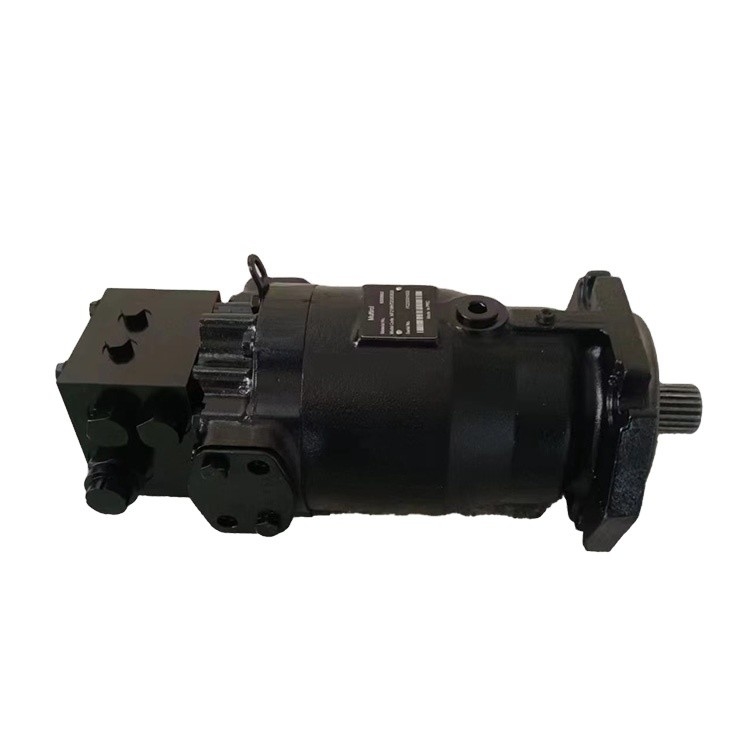

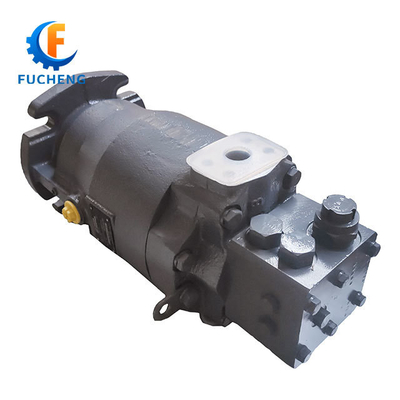

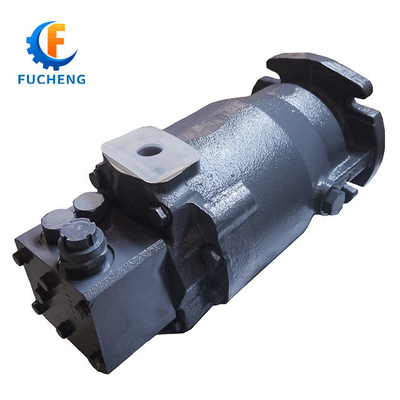

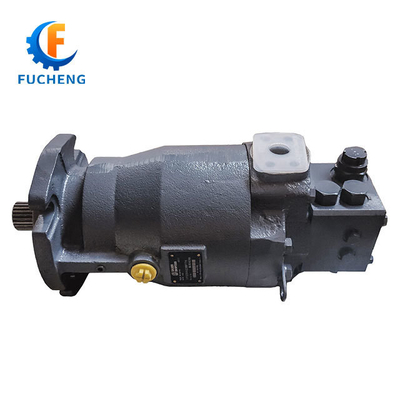

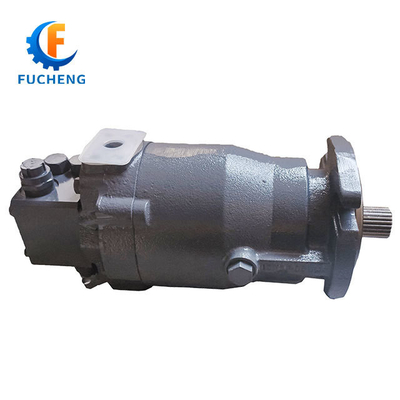

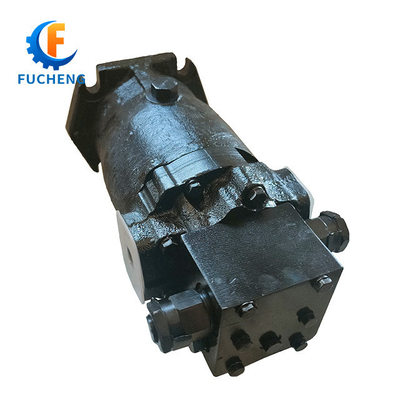

Sauer MF Hydraulic Axial Piston Motor Series20 are of swash plate construction with preset displacement and are designed for closed circuit operation.
--The output speed is proportional to the flow rate of the input fluid.
--The output torque is proportional to the differential between high and low pressure sides of the fluid circuit.
-- The direction of motor (output) shaft rotation depends upon which port the fluid enters the motor.
--The servo valve arrangement offers the facility to incorporate function regulators and remote control system.
-- Axial piston units are designed for easy servicing, complete dismantling and reassembly can be carried out standard hand tools, and all components or sub-assemblies are replaceable.
Displacement (cc) | 33.3 |
Max. pressure(Kw) | 35 |
Max. continuous flow(L/min) | 119 |
Nominal speed(rpm) | 1500 |
Detailed Images
Size Information
Technical Specifications and Data :
Model | MF21 | MF22 | MF23 | MF24 |
Displacement(cc) | 51.6 | 69.8 | 89.0 | 118.7 |
Nominal speed(rpm) | 1500 | 1500 | 1500 | 1500 |
Nominal pressure(MPa) | 21 | 21 | 21 | 21 |
Max. flow (L/min) | 159 | 196 | 230 | 278 |
