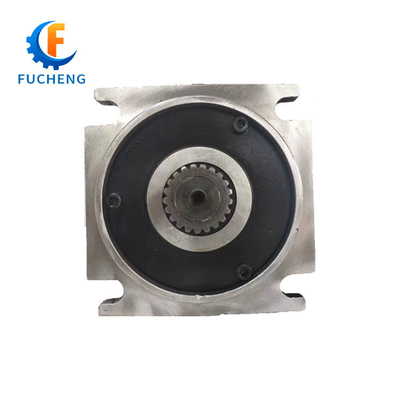

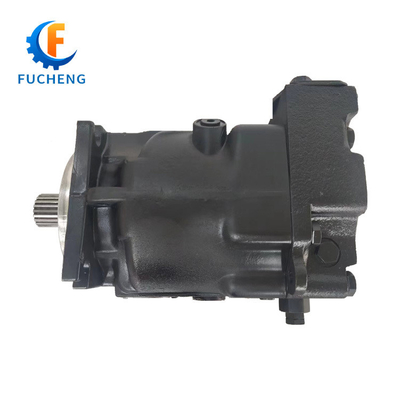

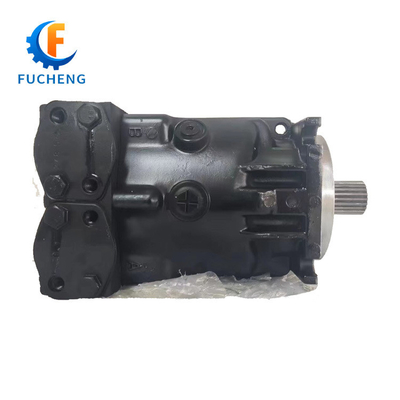

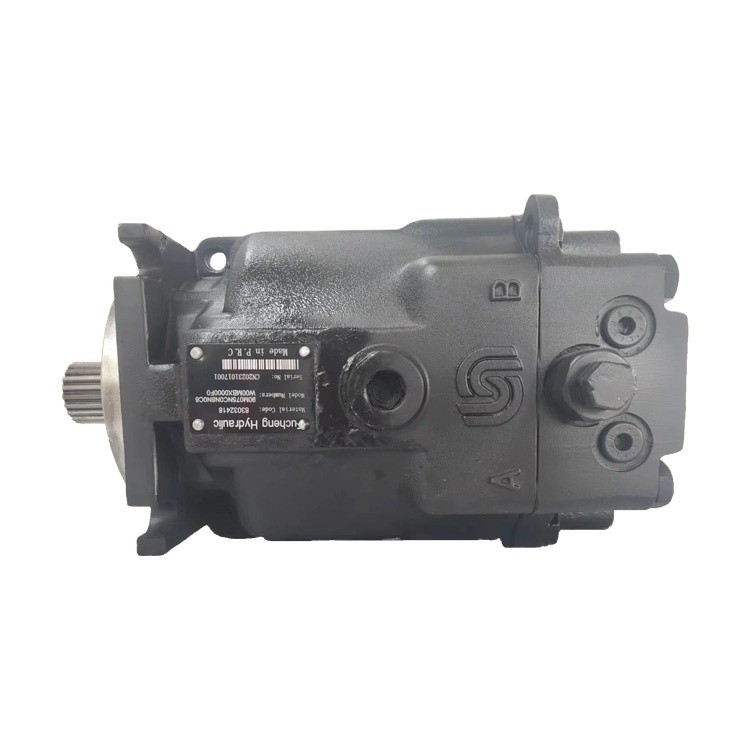

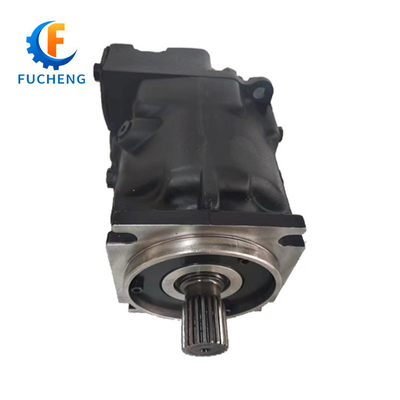

90M030 90M042 90M055 90M075 90M100 90M130 Hydraulic Motor for Mixer Truck by Fucheng
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng/customized/neutral |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $104.00/sets |
|
Detail Information |
|||
| Warranty: | 1 Year | Showroom Location: | None |
|---|---|---|---|
| Pressure: | High Pressure | Structure: | Standard |
| Weight: | 27 | Power: | Standard |
| Dimension(L*W*H): | Standard | Displacement: | Standard |
| Pump Type: | Standard | Application: | Machinery |
| Material: | Standard | Color: | Customers' Request |
| MOQ: | 1 Piece | Delivery Time: | 1-5 Days |
| Standard Or Nonstandard: | Standard Hydraulic | After Worranty Service: | Online Video Support |
| Payment: | T/T | Brand: | Fucheng |
| Package: | Wooden Case | ||
Product Description
Product Description
Series 90 hydrostatic pumps and motors can be applied together or combined with other products in a system to transfer and control hydraulic power. They are intended for closed circuit applications.
Series 90 motors also use the parallel axial piston/slipper design in conjunction with a fixed or tiltable swashplate. They can intake/discharge fluid through either port; they are bidirectional. They also include an optional loop flushing feature that provides additional cooling and cleaning of fluid in the working loop.
• Series 90 – advanced technology today
· Seven sizes of variable displacement pumps
· Five sizes of fixed displacement motors
· One variable displacement motor
· SAE and cartridge mount configurations
· Efficient axial piston design
· Proven reliability and performance
· Compact, lightweight
· Worldwide sales and service
Series 90 motors also use the parallel axial piston/slipper design in conjunction with a fixed or tiltable swashplate. They can intake/discharge fluid through either port; they are bidirectional. They also include an optional loop flushing feature that provides additional cooling and cleaning of fluid in the working loop.
• Series 90 – advanced technology today
· Seven sizes of variable displacement pumps
· Five sizes of fixed displacement motors
· One variable displacement motor
· SAE and cartridge mount configurations
· Efficient axial piston design
· Proven reliability and performance
· Compact, lightweight
· Worldwide sales and service
90M Series Axial Piston Sauer Danfoss Motor Used for Mixer Truck 90M030 90M042 90M055 90M075 90M100 90M130
Sauer 90 series of 90M030,90M042,90M055,90M075,90M100,90M130 hydraulic piston motor for agitator truck
1. Heavy duty hydraulic piston motor.
2. Completely interchangeable with original.
3. Widely applicable for agricultrual machinery, engineering machinery, mining machinery,industrial machinery, aviation and transport machinery etc.
4. Peak pressure of system is up to 35Mpa, and min. pressure is 0.9Mpa higher than housing pressure.
5. Max. housing working presssure is 0.28Mpa.
6. Set pressure of charging relief valve of pump and motor are respectively 1.31-1.45Mpa and 1.10-1.24Mpa higher than housing pressure, and max. oil temperature is 80°C.
7. Very comeptitive price.
8. 1 year of warranty.
9. Short delivery time.
1. Heavy duty hydraulic piston motor.
2. Completely interchangeable with original.
3. Widely applicable for agricultrual machinery, engineering machinery, mining machinery,industrial machinery, aviation and transport machinery etc.
4. Peak pressure of system is up to 35Mpa, and min. pressure is 0.9Mpa higher than housing pressure.
5. Max. housing working presssure is 0.28Mpa.
6. Set pressure of charging relief valve of pump and motor are respectively 1.31-1.45Mpa and 1.10-1.24Mpa higher than housing pressure, and max. oil temperature is 80°C.
7. Very comeptitive price.
8. 1 year of warranty.
9. Short delivery time.
Image details
Size Information
size | 30 | 42 | 55 | 75 | 100 | 130 |
displacement | 30 | 42 | 55 | 75 | 100 | 130 |
rated spees | 4200 | 4200 | 3900 | 3600 | 3300 | 3100 |
max speed | 4600 | 4600 | 4250 | 3950 | 3650 | 3400 |
Related Products
Packing&Shipping
1.)Package: Neutral Package / Customize/Packaging Box
2.) Plywood Pallet:Anti-rust treatment+poly bag+plywood pallet.
3.) Carton: Anti-rust treatment+poly bag+Foam box+wooden box
4.)Customer Demanding
2.) Plywood Pallet:Anti-rust treatment+poly bag+plywood pallet.
3.) Carton: Anti-rust treatment+poly bag+Foam box+wooden box
4.)Customer Demanding
Company Introduction
Jinan Fucheng International Trade Co., Ltd is a professional company integrated with hydraulic product manufacture, trade and technical service. We focus on good quality, better service, reasonable price and supply comprehensive solution including free maintenance suggestion and consultant. We provide worldwide brand hydraulic product such as Rexroth, Sauer,Vikers, Cater, Kawasaki, Linde, Eaton, Komatsu and etc. We exoported to more than 110 customers in 89 countries such as America, Canada, Mexico,Peru, Russia, Czeck, Slovakia, Moroco, Gana, Thailand, India and etc.
Culture: Get trust of clients and serve based on morality, Concentrate on quality to benefit clients.
Main products are globle and Chinese brand hydraulic main pump, synchronous shunt motor, valve and etc.. We provide most of hydraulic product to construction machinery, agricultural machinery, power plants, coking plants, chemical plants, marine machinery, port machinery, oil field machinery, coal mining machinery, heavy machinery processing plant and etc.. in which the specific equipment includes concrete mixer truck, underground scraper, grain combine harvester, high ground clearance spraying machine, concrete pump truck, road roller, paver, rotary drilling rig, commercial lawn vehicle, hand roller, small driving roller, Small transport truck, minitype sweeper, mini slip loader, winch equipment and all kinds of equipment under 2 tons capacity with continuously variable speed driving systems.
Culture: Get trust of clients and serve based on morality, Concentrate on quality to benefit clients.
Main products are globle and Chinese brand hydraulic main pump, synchronous shunt motor, valve and etc.. We provide most of hydraulic product to construction machinery, agricultural machinery, power plants, coking plants, chemical plants, marine machinery, port machinery, oil field machinery, coal mining machinery, heavy machinery processing plant and etc.. in which the specific equipment includes concrete mixer truck, underground scraper, grain combine harvester, high ground clearance spraying machine, concrete pump truck, road roller, paver, rotary drilling rig, commercial lawn vehicle, hand roller, small driving roller, Small transport truck, minitype sweeper, mini slip loader, winch equipment and all kinds of equipment under 2 tons capacity with continuously variable speed driving systems.
Our Services & Strength
1.High quality and competitive price ;
2.Standard packing and timely delivery ;
3.We supply original product:
4.Experienced supplier for more than 10 years;
5.Warranty one year;
6.Professional technical support for 24 hours.
3.We supply original product:
4.Experienced supplier for more than 10 years;
5.Warranty one year;
6.Professional technical support for 24 hours.
Certifications
FAQ
Q1: I want to buy your products, how can I pay?
A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date.
Q3: If we don't find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
Q5: What is the lead time?
A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
A :You can pay via T/T , WEST UNION or other payment terms we reach agreement.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date.
Q3: If we don't find what we want on your website, what should we do?
A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it.
Q4: Can we buy 1 pc of each item for quality testing?
A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing.
Q5: What is the lead time?
A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
90M Series Axial Piston Sauer Danfoss Motor Used for Mixer Truck 90M030 90M042 90M055 90M075 90M100 90M130
