MF20 Hydraulic Piston Motor International Standard for Heavy Duty Applications
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $350.00 - $600.00/sets |
|
Detail Information |
|||
| Pressure: | Hydraulics | Structure: | Standard |
|---|---|---|---|
| Weight: | 50 | Power: | Standard |
| Dimension(L*W*H): | Standard | Warranty: | 1 Year |
| Showroom Location: | None | Motor Type: | Piston Motor |
| Displacement: | Other | Product Name: | Hydraulic Pump |
| Application: | Industrial Machinery | Standard: | International Standard |
| MOQ: | 1 Set | Color: | Customer's Request |
| Material: | Cast Iron | Standard Or Nonstandard: | Standanrd |
| Delivery Time: | Payment | Payment: | T/T |
| Feature: | High Efficiency | ||
Product Description
Product Description
Features
——The full-length shaft with a high efficient tapered roller bearing arrangement offers a high loading capacity for external radialforces.
——Additional motors can be built on.
——The hydro-mechanical servo displacement control maintains the selected swash plate position and hence motor displacement.
——Upon release of the control handle, the swash plate automatically returns to the null position and the flow become zero.
——High case pressures can be archived without leakage even at the lowest temperature by using suitable shaft seals.
——Upon release of the control handle, the swash plate automatically returns to the null position and the flow become zero.
——High case pressures can be archived without leakage even at the lowest temperature by using suitable shaft seals.
—— The servo valve arrangement offers the facility to incorporate function regulators and remote control system.
——Axial piston units are designed for easy servicing, complete dismantling and reassembly can be carried out standard hand tools, and all components or sub-assemblies are replaceable.
Max. displacement （CC） | 33,3 |
Max. flow （dm3min-1） | 119, 54 |
Max. pressure （MPa） Nominal pressure（MPa） | 35 21 |
Charging pressure（MPa） | 0,8 - 2,0 |
Max. pressure in case（MPa） | 0,25 continuous 0,5 intermittent |
Weight（Kg） | 30 |

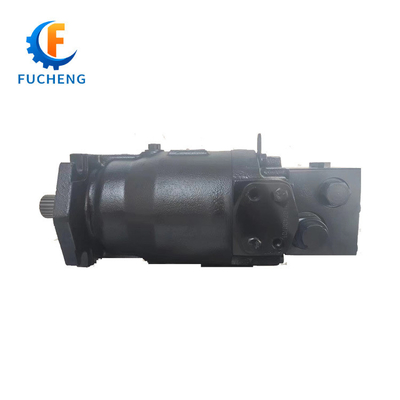

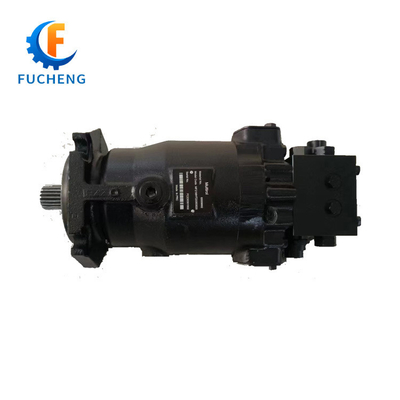

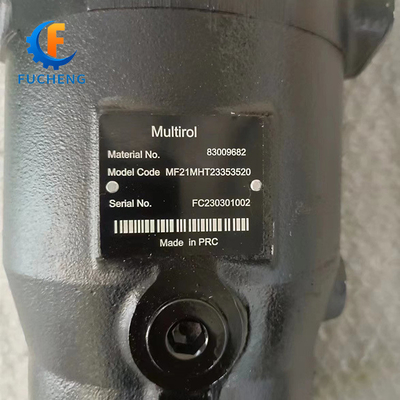

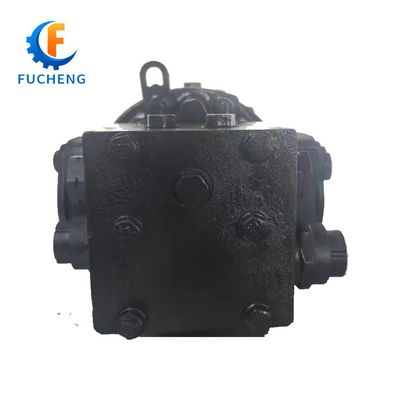

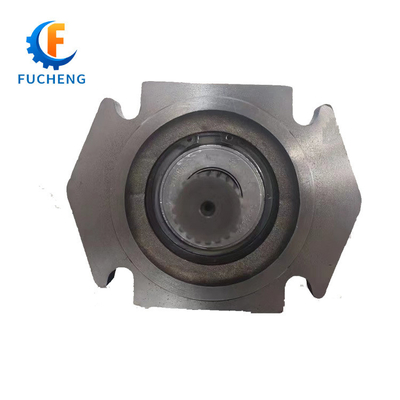

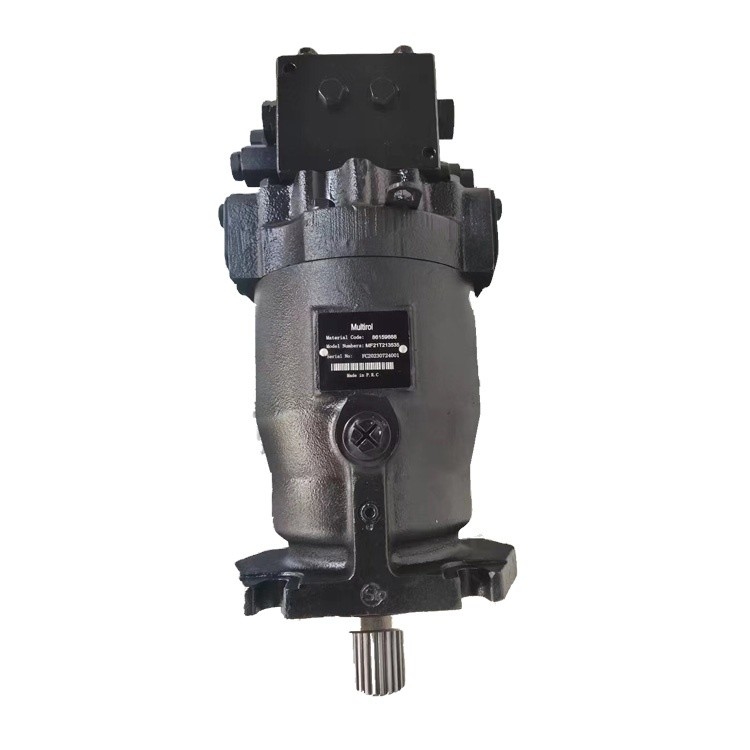

Detailed Images
Size Information
Size Chart of This Design
Size | MF20 | MF21 | MF22 | MF23 | MF24 |
Displacement | 33 | 51 | 69 | 89 | 118 |
Weight | 30 | 35 | 40 | 47 | 70 |
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Introduction
Jinan Fucheng Hydraulic Equipment CO., Ltd is a professional company integrated with manufacture, trade, and technical service for hydraulic product, we focus on good quality, better service, reasonable price and supply comprehensive proposal, including free maintenance and consultant. Our customers are from industries of mixer truck, underground loader, combine harvester, marine machinery, concrete pump truck, coal mine machinery, road paver, roller, harbor machinery, oil exploration machinery, rotary driller etc. Main business range: A10VSO, A4VSO, A7V0, A11VO, A4VG, A6VE, A2FE, A6VM, A2FM, A2FO, A6V, A7V, A8V etc.PV20-24,MF20-24,90R55,90R75,90R100,90M55,90M75,90M100 K3V63/112/140/180DT/DTP, K5V80/140/200DT/DTH Gear pump: 0PF1PF1.5PF2PF2.5APF3PF3.5APF constant gear pump, sundstrand pump, wood splitter pump, cater pump, PTO gear pump, and high precision shunt motor, multiple directional valves. Spare parts of Piston pump and motor: Bosch Rexroth, Kawasaki, Linde, SAUER, Eaton, Vikers, Komatsu, Cater etc.
FAQ
Q1: I want to buy your products, how can I pay? A :You can pay via T/T , WEST UNION or other payment terms we reach agreement. Q2: How can you guarantee the quality? A: One year's warranty against B/L date. Q3: If we don't find what we want on your website, what should we do? A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it. Q4: Can we buy 1 pc of each item for quality testing? A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing. Q5: What is the lead time? A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
