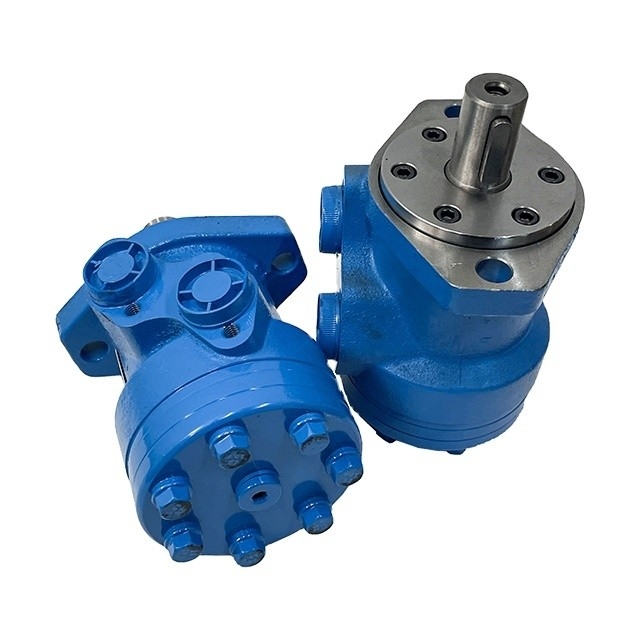

OMR80 OMR100 OMR160 OMR200 OMR250 OMR315 Orbital Hydraulic Motor for Industrial Machinery
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $61.00 - $189.00/sets |
|
Detail Information |
|||
| Pressure: | Hydraulics | Structure: | Standard |
|---|---|---|---|
| Weight: | 22 | Power: | Standard |
| Dimension(L*W*H): | Standard | Warranty: | 1 Year |
| Showroom Location: | None | Motor Type: | Piston Motor |
| Displacement: | 100 Cc | Application: | Industrial Machinery |
| Color: | Customer's Request | Standard Or Nonstandard: | Standanrd Hydraulic Motor Brake |
| Material: | Cast Iron | Payment: | T/T |
| MOQ: | 1 Set | Delivery Time: | Payment |
| Feature: | Replace Danfoss | Motor: | Orbit Motor Omr |
| Brand: | Fucheng | ||
Product Description
Product Description
Orbital Motors Features:
* Smooth running over the entire speed range
* Constant operating torque over a wide speed range
* High starting torque
* High return pressure without the use of drain line (high pressure shaft seal)
* High efficiency
* Smooth running over the entire speed range
* Constant operating torque over a wide speed range
* High starting torque
* High return pressure without the use of drain line (high pressure shaft seal)
* High efficiency
* High radial and axial bearing capacity
* Long life under extreme operating conditions
* Robust and compact design
* For applications in both open and closed loop hydraulic systems
* Suitable for a wide variety of hydraulics fluids
* Long life under extreme operating conditions
* Robust and compact design
* For applications in both open and closed loop hydraulic systems
* Suitable for a wide variety of hydraulics fluids
Technical Features:
The program is characterized by technical features appealing to a large number of applications and by
motors that can be adapted to a given application.
Adaptions comprise the following variants:
* Motors with:
‒ corrosion resistant parts
‒ needle bearing (OMP, OMR)
‒ low leakage version or super low leakage version (OMR, OMR X)
‒ integrated negative holding brake
‒ integrated flushing valve
‒ speed sensor
‒ tachometer connection
‒ black finish paint
* Short motors without bearings or Ultra short motors
* Wheel motors with recessed mounting flange
Orbital Motors Application Areas:
The orbital motors are used in the following application areas:
* Construction equipment
* Agricultural equipment
* Material handling & Lifting equipment
* Forestry equipment
* Lawn and turf equipment
* Machine tools and stationary equipment
* Marine equipment
* Special purpose
The program is characterized by technical features appealing to a large number of applications and by
motors that can be adapted to a given application.
Adaptions comprise the following variants:
* Motors with:
‒ corrosion resistant parts
‒ needle bearing (OMP, OMR)
‒ low leakage version or super low leakage version (OMR, OMR X)
‒ integrated negative holding brake
‒ integrated flushing valve
‒ speed sensor
‒ tachometer connection
‒ black finish paint
* Short motors without bearings or Ultra short motors
* Wheel motors with recessed mounting flange
Orbital Motors Application Areas:
The orbital motors are used in the following application areas:
* Construction equipment
* Agricultural equipment
* Material handling & Lifting equipment
* Forestry equipment
* Lawn and turf equipment
* Machine tools and stationary equipment
* Marine equipment
* Special purpose
Displacement (cc) | 315.7 |
Max speed (rpm) cont. int. | 190 240 |
Max output (KW) | 5.0 |
Max pressure drop ( bar) [psi] | 70 [1020] |
Max. oil flow (L/min) [US gal/min] | 60 [15.9] |

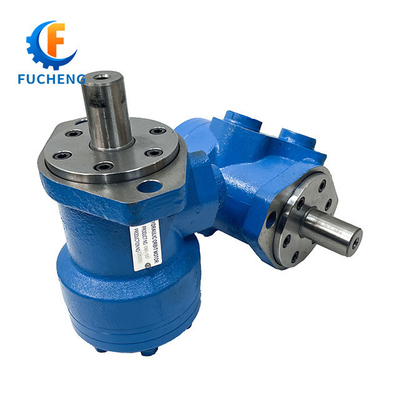

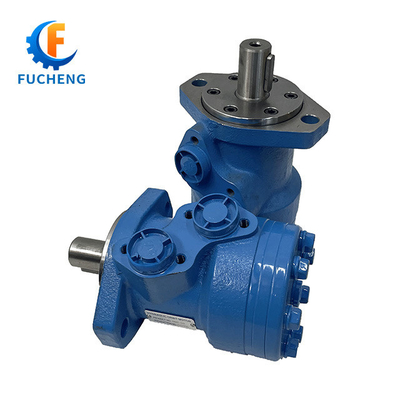

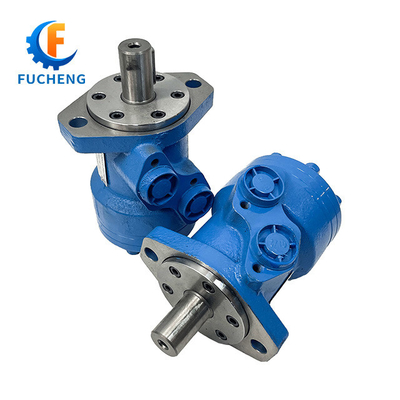

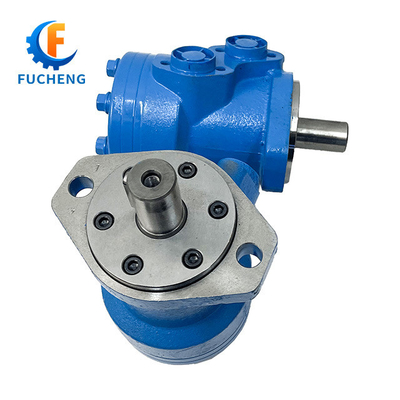

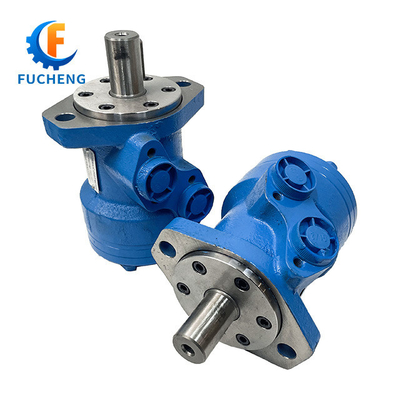

Detailed Images
Size Information
Table of Values
Model | OMR80 | OMR100 | OMR125 | OMR160 | OMR200 | OMR315 |
Displacement (cc) | 77.7 | 96.2 | 120.2 | 159.6 | 199.8 | 315.7 |
Max.oil flow (L/min) | 60 | 60 | 60 | 60 | 60 | 60 |
Max.output (KW) | 12.5 | 13.0 | 12.5 | 10.0 | 8.0 | 5.0 |
