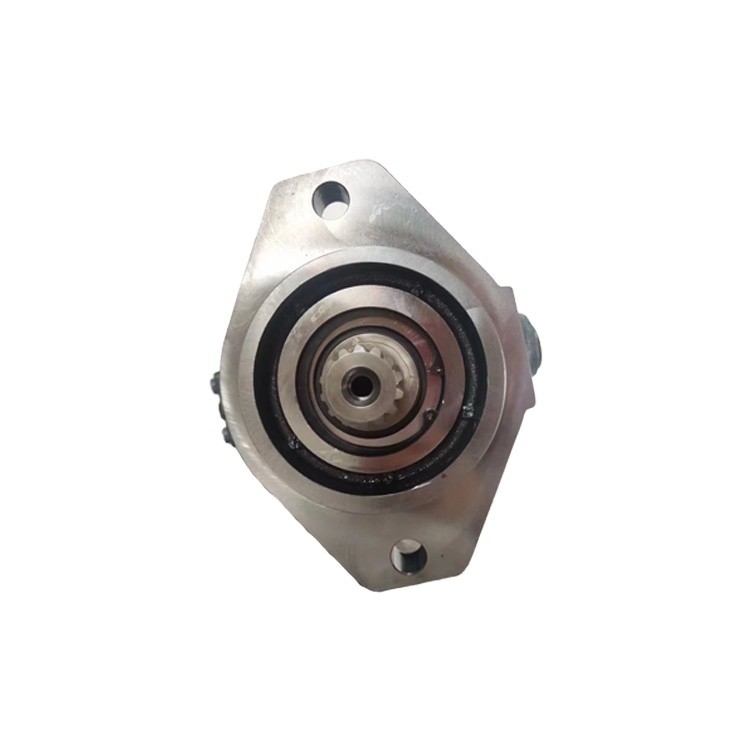

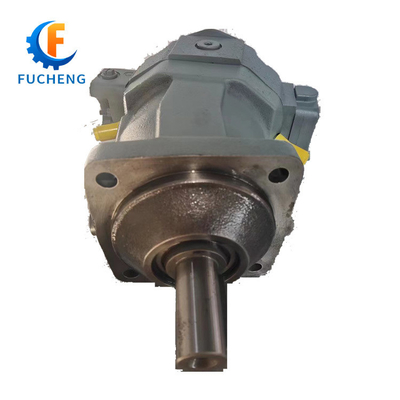

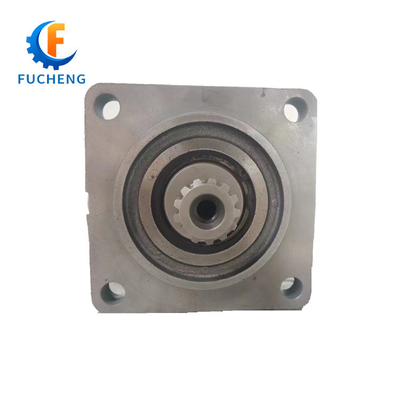

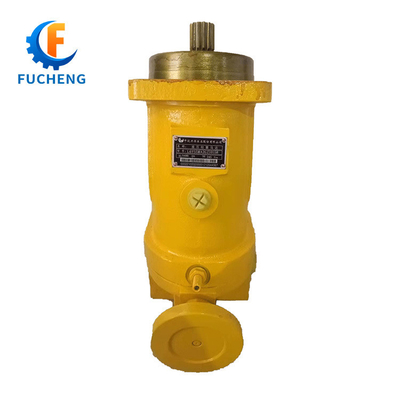

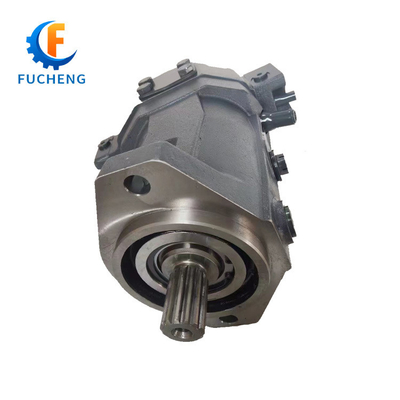

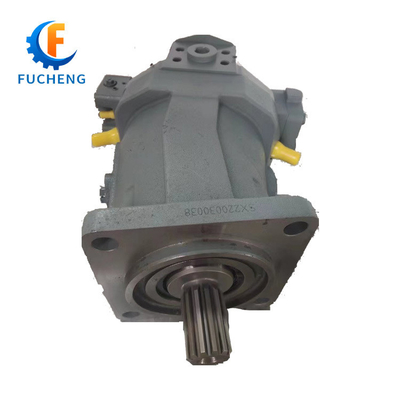

Best Performance A6vm55 A6vm80 A6vm107 A6vm140 A6vm160 A6vm200 Rexroth Hydraulic Motor
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $1,667.00 - $2,589.00/sets |
|
Detail Information |
|||
| Pressure: | Hydraulics | Structure: | Standard |
|---|---|---|---|
| Weight: | 47 | Power: | Standard |
| Dimension(L*W*H): | Standard | Warranty: | 1 Year |
| Showroom Location: | None | Motor Type: | Piston Motor |
| Displacement: | 107cm³ | Product Name: | Fucheng |
| Application: | Industrial Machinery | Material: | Cast Iron |
| Color: | Customer's Request | Standard Or Nonstandard: | Standanrd |
| Package: | Neutral Package | MOQ: | 1 Set |
| Payment: | T/T | Delivery Time: | Payment |
| Feature: | High Efficiency | ||
Product Description
Product Description
Features:
– Variable displacement axial piston motor of bent axis design for hydrostatic transmissions in open and closed circuits – For use in mobile and stationary applications – The wide control range enables the variable displacement motor to satisfy the requirement for high rotational speed and high torque. – The displacement is continuously variable from Vg max to Vg min = 0. – The output speed depends on the flow capacity of the pumps and the displacement of the motor. – The torque increases with the pressure differential between the high and low pressure side and with increasing displacement. – Wide control range with hydrostatic transmissions – Wide selection of regulating and control devices – Cost savings as no need for shiftable gearboxes and possibility to use smaller pumps – Rugged, compact bearing system with long service life – High power density – Favorable start-up efficiency – Low moment of inertia – Large swivel range
Displacement geometric per unit Vgmax (cc) | 107 |
Rotational speed max. Nmax at Vg max (rpm) | |
Flow max. (L/min) | 380 |
Case volume (L) | 1.5 |
Mass (approx.) (Kg) | 47 |
Detailed Images
Size Information
Size Chart of This Design
Size | 55 | 80 | 107 | 140 | 160 |
Displacement (cc) | 54.8 | 80 | 107 | 140 | 160 |
Speed maximum (rpm) | 4,450 | 3,900 | 3,550 | 3,250 | 3,100 |
Input flow (L/min) | 244 | 312 | 380 | 455 | 496 |
Related Products
Packing&Shipping
Company Introduction
Jinan Fucheng Hydraulic Equipment CO., Ltd is a professional company integrated with manufacture, trade, and technical service for hydraulic product, we focus on good quality, better service, reasonable price and supply comprehensive proposal, including free maintenance and consultant. Our customers are from industries of mixer truck, underground loader, combine harvester, marine machinery, concrete pump truck, coal mine machinery, road paver, roller, harbor machinery, oil exploration machinery, rotary driller etc. Main business range: A10VSO, A4VSO, A7V0, A11VO, A4VG, A6VE, A2FE, A6VM, A2FM, A2FO, A6V, A7V, A8V etc.PV20-24,MF20-24,90R55,90R75,90R100,90M55,90M75,90M100 K3V63/112/140/180DT/DTP, K5V80/140/200DT/DTH Gear pump: 0PF1PF1.5PF2PF2.5APF3PF3.5APF constant gear pump, sundstrand pump, wood splitter pump, cater pump, PTO gear pump, and high precision shunt motor, multiple directional valves. Spare parts of Piston pump and motor: Bosch Rexroth, Kawasaki, Linde, SAUER, Eaton, Vikers, Komatsu, Cater etc.
FAQ
Q1: I want to buy your products, how can I pay? A :You can pay via T/T , WEST UNION or other payment terms we reach agreement. Q2: How can you guarantee the quality? A: One year's warranty against B/L date. Q3: If we don't find what we want on your website, what should we do? A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it. Q4: Can we buy 1 pc of each item for quality testing? A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing. Q5: What is the lead time? A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
