Rexroth A8VO Variable Double Axial Cast Iron PISTON PUMP for Industrial Applications
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $6,428.57/sets >=1 sets |
| Packaging Details: | 1.)Package: Neutral Package / Customize/Packaging Box<br>2.) Plywood Pallet: Anti-rust treatment+poly bag+plywood pallet.<br>3.) Wood box: Anti-rust treatment+poly bag+Foam box+wooden box<br>4.)Customer Demand |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | Showroom Location: | None |
|---|---|---|---|
| Pressure: | Hydraulics | Structure: | Standard |
| Weight: | 116 | Power: | 268 |
| Dimension(L*W*H): | Standard | Displacement: | 80cm³ |
| Pump Type: | PISTON PUMP | Application: | Industrial Machinery |
| Color: | Customer's Request | Standard Or Nonstandard: | Standanrd |
| Delivery Time: | Payment | Material: | Cast Iron |
| Standard: | International Standard | MOQ: | 1 Pc |
| Payment: | T/T | Product Name: | Fucheng |
| Feature: | High Efficiency | ||
Product Description
Product Description
Features:
– Variable double pump with two axial tapered piston rotary groups of bent-axis design for hydrostatic drives in open circuits – The flow is proportional to the input speed and to the displacement, and is infinitely variable from qV max to qV min = 0 – The pump is suitable for direct mounting on the flywheel case in diesel engines – One common suction port for auxiliary pump and both circuits – A wide range of control instruments is available for different control and regulating functions – Individual power controller – Integrated auxiliary pump with pressure-relief valve, optionally with additional pressure-reduction valve – Power take-off for mounting axial piston and gear pumps – Excellent power to weight ratio – Long service life
Displacement at Vg max (cc) | 2 x 107 |
Input speed at Vg max (rpm) at Vg ≤ Vg max (rpm) | 2150 2450 |
Flow at Nmax and Vg max (L/min) | 2 x 230 |
Power at Nmax, Vgmax and Dp=350 bar (kW) | |
Angular acceleration (single rotary group) (rad/s2) | 17100 |
Mass approx. (Kg) | 116 |

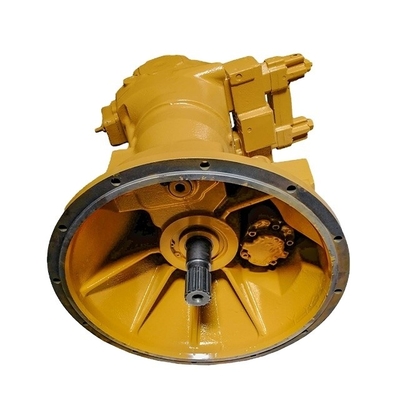

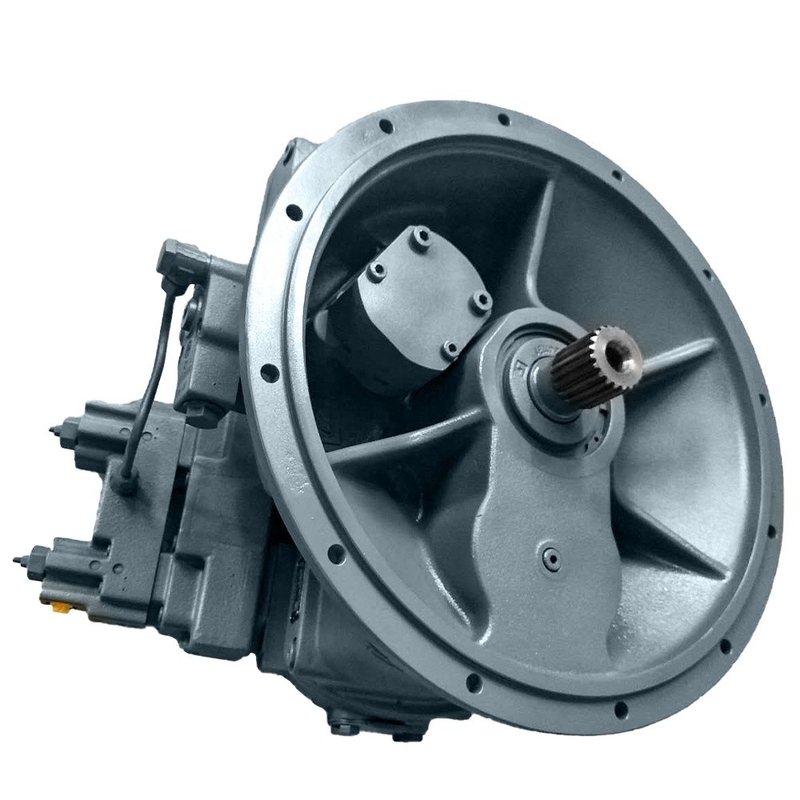

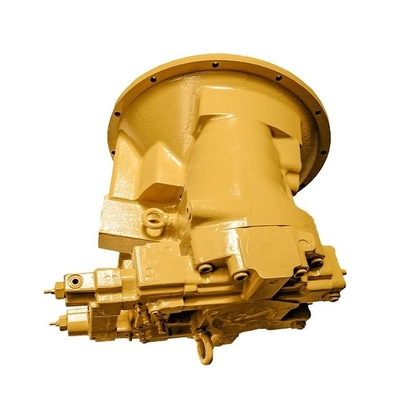

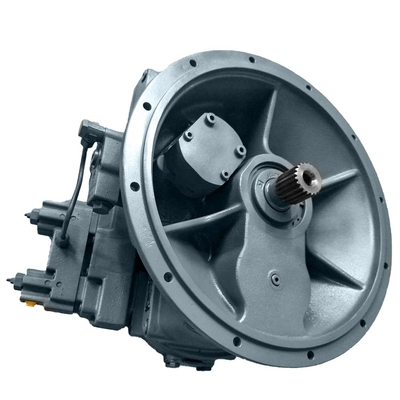

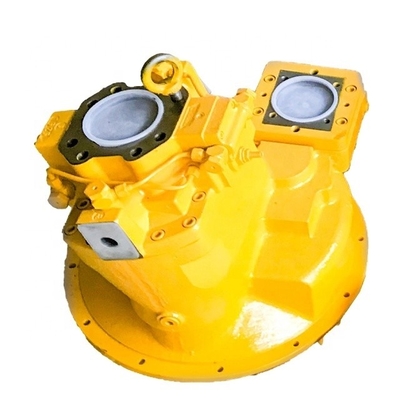

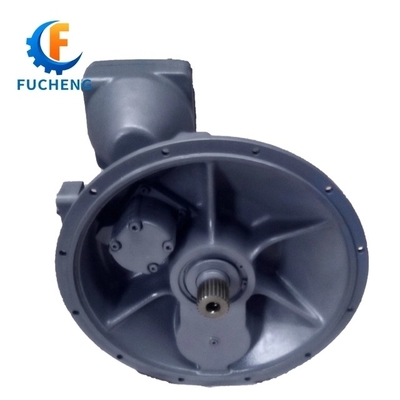

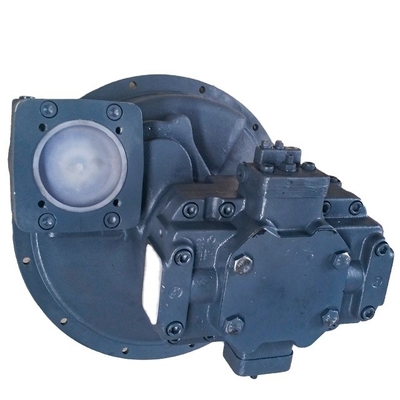

Detailed Images
Size Information
Table of values (theoretical values, without efficiencies and tolerances; values rounded)
Size | 55 | 80 | 107 | 140 | 200 |
Displacement (cc) | 2 x 54.8 | 2 x 80 | 2 x 107 | 2 x 140 | 2 x 200 |
Flow (L/min) | 2 x 137 | 2 x 179 | 2 x 230 | 2 x 294 | 2 x 390 |
Power (KW) | 160 | ||||
Input speed (rpm) | 2500 | 2240 | 2150 | 2100 | 1950 |
Related Products
Packing&Shipping
Company Introduction
Jinan Fucheng Hydraulic Equipment CO., Ltd is a professional company integrated with manufacture, trade, and technical service for hydraulic product, we focus on good quality, better service, reasonable price and supply comprehensive proposal, including free maintenance and consultant. Our customers are from industries of mixer truck, underground loader, combine harvester, marine machinery, concrete pump truck, coal mine machinery, road paver, roller, harbor machinery, oil exploration machinery, rotary driller etc. Main business range: A10VSO, A4VSO, A7V0, A11VO, A4VG, A6VE, A2FE, A6VM, A2FM, A2FO, A6V, A7V, A8V etc.PV20-24,MF20-24,90R55,90R75,90R100,90M55,90M75,90M100 K3V63/112/140/180DT/DTP, K5V80/140/200DT/DTH Gear pump: 0PF1PF1.5PF2PF2.5APF3PF3.5APF constant gear pump, sundstrand pump, wood splitter pump, cater pump, PTO gear pump, and high precision shunt motor, multiple directional valves. Spare parts of Piston pump and motor: Bosch Rexroth, Kawasaki, Linde, SAUER, Eaton, Vikers, Komatsu, Cater etc.
FAQ
Q1: I want to buy your products, how can I pay? A :You can pay via T/T , WEST UNION or other payment terms we reach agreement. Q2: How can you guarantee the quality? A: One year's warranty against B/L date. Q3: If we don't find what we want on your website, what should we do? A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it. Q4: Can we buy 1 pc of each item for quality testing? A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing. Q5: What is the lead time? A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
