177Kw A7VO28 A7VO55 A7VO160 A7VO200 A7VO250 Hydraulic Piston Pump for Hydraulic Industry
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $1,123.00 - $5,789.00/sets |
|
Detail Information |
|||
| Warranty: | 1 Year | Showroom Location: | None |
|---|---|---|---|
| Pressure: | Hydraulic | Structure: | Standard |
| Weight: | 71 | Power: | 177Kw |
| Dimension(L*W*H): | Standard | Displacement: | 145cm³ |
| Pump Type: | PISTON PUMP | Usage: | Hydraulic Machinery Industry |
| Standard: | International Standard | Application: | Industrial Machinery |
| Delivery Time: | Payment | Feature: | High Efficiency |
| Payment: | T/T | Material: | Cast Iron |
| Color: | Customer's Request | MOQ: | 1 Set |
| Condition: | New | ||
Product Description
Product Description
– Variable axial piston pump with tapered piston rotary group in bent axis design for hydrostatic drives in open circuits – For operation in mobile and industrial applications – The flow is proportional to the drive speed and the displacement and steplessly variable
from qv max to qv min = 0 – Wide range of controls and adjustment devices – Compact, robust bearing system for long service life – Available with Long Life bearings for special fluids and extreme service life requirements – Pressure control is standard – Optical or electric swivel angle indicator available
Displacement Vg max (cc) | 160 |
Maximum rotational speed At Vgmax (rpm) | 1900 |
Maximum flow at Nnom at Vg max (L/min) | 304 |
Maximum power at qv nom and Δp = 350 bar (Kw) | 177 |
Case volume (L) | 2.4 |
Weight approx.(Kg) | 71 |

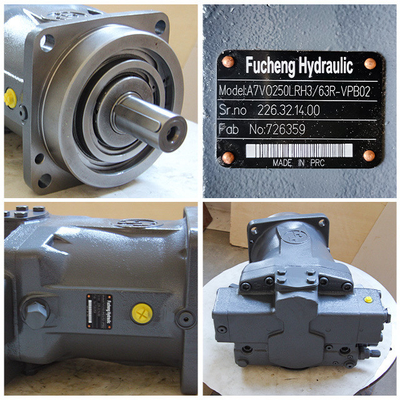

Detailed Images
Size Information
Size Chart of This Design
Size | 28 | 55 | 80 | 107 | 160 | 250 |
Displacement Vg max(cc) | 28.1 | 54.8 | 80 | 107 | 160 | 250 |
Maximum power (Kw) | 52 | 80 | 105 | 134 | 177 | 219 |
Maximum flow (L /min) | 89 | 137 | 179 | 230 | 304 | 375 |
Related Products
Packing&Shipping
Company Introduction
Jinan Fucheng Hydraulic Equipment CO., Ltd is a professional company integrated with manufacture, trade, and technical service for hydraulic product, we focus on good quality, better service, reasonable price and supply comprehensive proposal, including free maintenance and consultant. Our customers are from industries of mixer truck, underground loader, combine harvester, marine machinery, concrete pump truck, coal mine machinery, road paver, roller, harbor machinery, oil exploration machinery, rotary driller etc. Main business range: A10VSO, A4VSO, A7V0, A11VO, A4VG, A6VE, A2FE, A6VM, A2FM, A2FO, A6V, A7V, A8V etc.PV20-24,MF20-24,90R55,90R75,90R100,90M55,90M75,90M100 K3V63/112/140/180DT/DTP, K5V80/140/200DT/DTH Gear pump: 0PF1PF1.5PF2PF2.5APF3PF3.5APF constant gear pump, sundstrand pump, wood splitter pump, cater pump, PTO gear pump, and high precision shunt motor, multiple directional valves. Spare parts of Piston pump and motor: Bosch Rexroth, Kawasaki, Linde, SAUER, Eaton, Vikers, Komatsu, Cater etc.
FAQ
Q1: I want to buy your products, how can I pay? A :You can pay via T/T , WEST UNION or other payment terms we reach agreement. Q2: How can you guarantee the quality? A: One year's warranty against B/L date. Q3: If we don't find what we want on your website, what should we do? A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it. Q4: Can we buy 1 pc of each item for quality testing? A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing. Q5: What is the lead time? A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
