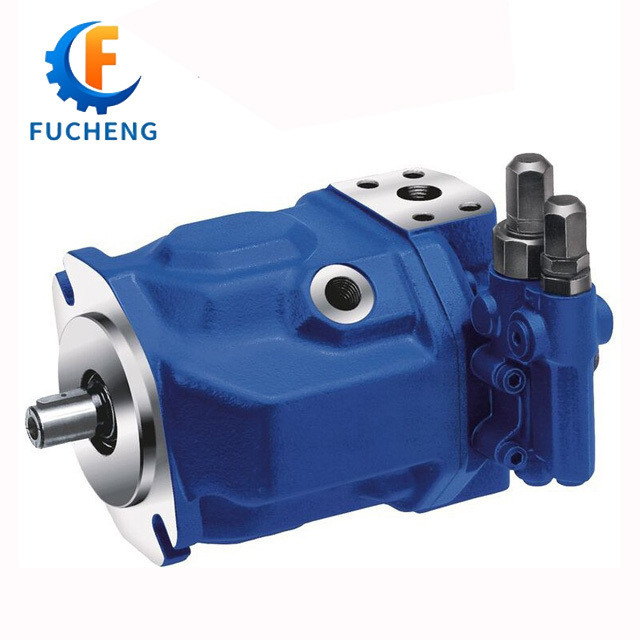

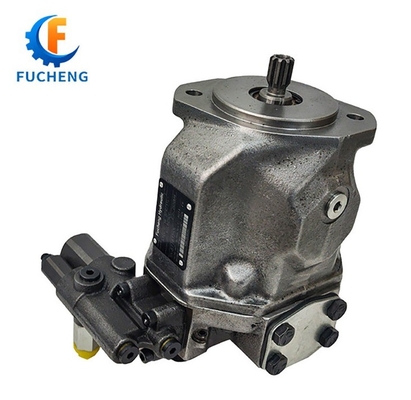

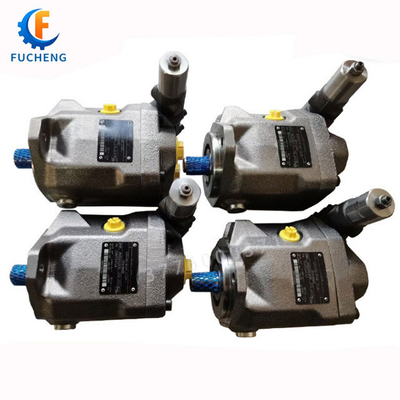

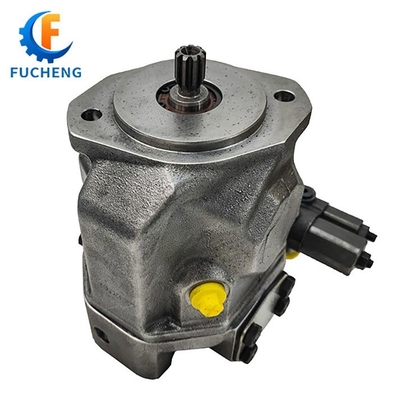

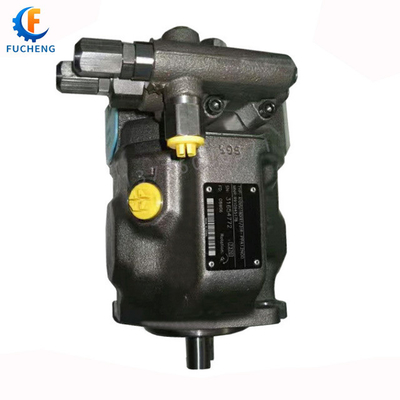

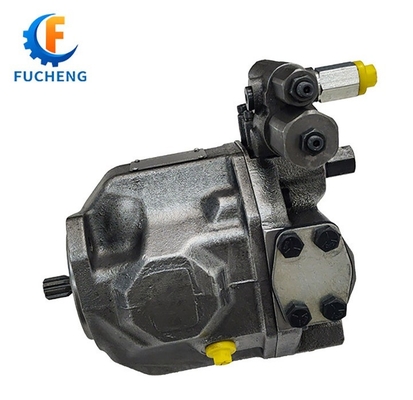

Fucheng High Pressure A10VSO28 A10VS071 Hydraulic Pump from Rexroth A10VSO Series
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $850.00 - $1,800.00/sets |
|
Detail Information |
|||
| Warranty: | 1 Year, 1 Year | Showroom Location: | None |
|---|---|---|---|
| Pressure: | Standard | Structure: | Standard |
| Weight: | 27 | Power: | Standard, Hydraulic Fluid |
| Dimension(L*W*H): | Standard | Displacement: | 280cm³ |
| Pump Type: | PISTON PUMP | Application: | Industrial |
| Theory: | Axial Flow Pump | Type: | Variable Displacement Pump |
| Feature: | High Efficiency | Brand: | Customized/Fucheng/neutral |
| Standard Or Nonstandard: | Standard | Color: | Cutomer's Request |
| MOQ: | 1 Set | ||
Product Description
Product Description
Features:
--Variable pump in axial piston swashplate design for hydrostatic drives in an open circuit
– The flow is proportional to the drive speed and the displacement.
– The flow can be steplessly varied by adjustment of the swashplate angle.
– 2 case drain ports
– Excellent suction characteristics
– Low noise level
– Long service life
– Favorable power/weight ratio
– Versatile controller range
– Short control time
– The through drive is suitable for adding gear pumps and axial piston pumps up to the same size,
– The flow is proportional to the drive speed and the displacement.
– The flow can be steplessly varied by adjustment of the swashplate angle.
– 2 case drain ports
– Excellent suction characteristics
– Low noise level
– Long service life
– Favorable power/weight ratio
– Versatile controller range
– Short control time
– The through drive is suitable for adding gear pumps and axial piston pumps up to the same size,
i.e., 100% through drive.
Size Information
Technical Specifications
Model | A10VSO18 | A10VSO28 | A10VSO45 | A10VSO71 | A10VSO100 |
Displacement (cc) | 18 | 28 | 45 | 71 | 100 |
Maximum speed(rpm) | 3900 | 3000 | 2600 | 2200 | 2000 |
Flow(L/min) | 59 | 84 | 117 | 156 | 200 |
