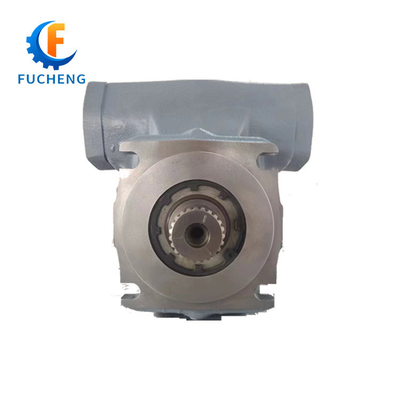

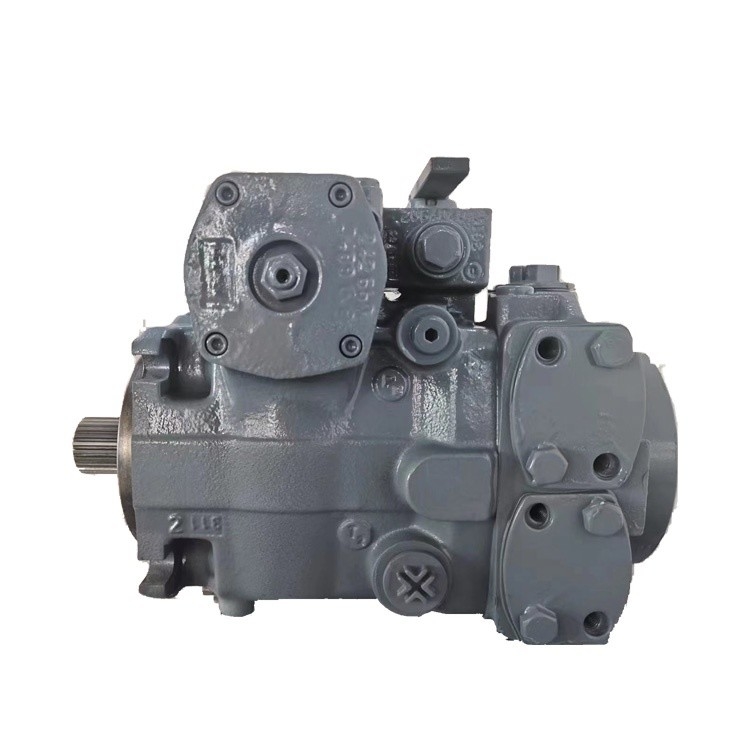

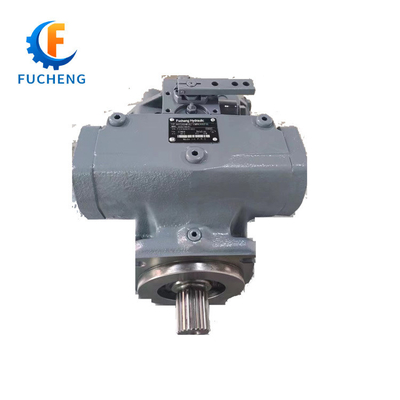

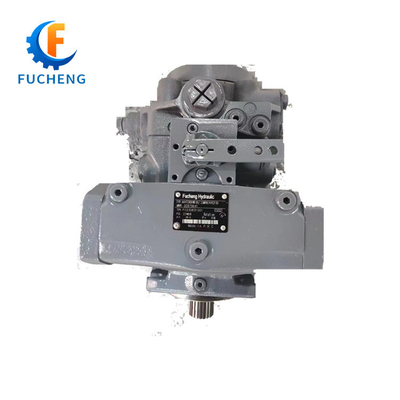

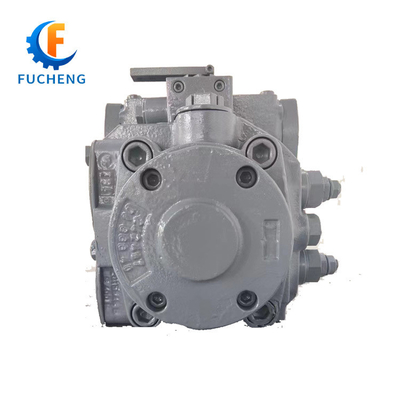

A4VTG71 A4VTG71HW A4VTG90HW A4VTG90 Axial Piston Brueninghaus Hydromatik Mannesmann Mixer Pump
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $700.00 - $950.00/sets |
|
Detail Information |
|||
| Warranty: | 1 Year | Showroom Location: | None |
|---|---|---|---|
| Pressure: | Hydraulics | Structure: | Standard |
| Weight: | 34 | Power: | 79Kw |
| Dimension(L*W*H): | Standard | Displacement: | 28cm³ |
| Pump Type: | PISTON PUMP | Product Name: | Fucheng |
| Application: | Industrial Machinery | Material: | Cast Iron |
| Color: | Customer's Request | Standard Or Nonstandard: | Standanrd |
| Delivery Time: | Payment | Packing: | Pallet Wooden Cases |
| Package: | Neutral Package | MOQ: | 1 Piece |
| Usage: | Hydraulic Drive Field | ||
Product Description
Product Description
Features:
--Variable axial piston pump of swashplate design for hydrostatic closed circuit transmission --Flow is proportional to drive speed and displacement and is infinitely variable
--Flow increases with the swivel angle of the swashplate from 0 to its maximum value
--Flow direction changes smoothly when the swashplate is moved through the neutral position
--Two pressure-relief valves are provided on the high pressure ports to protect the hydrostatic
transmission (pump and motor) from overload
--The high-pressure relief valves also function as boost valves
--The integrated boost pump acts to replenish leakage and provide control oil.
--The maximum boost pressure is limited by a built-in boost-pressure-relief valve .
--The high-pressure relief valves also function as boost valves
--The integrated boost pump acts to replenish leakage and provide control oil.
--The maximum boost pressure is limited by a built-in boost-pressure-relief valve .
Displacement (cc) | 90 |
Speed maximum ,at Vg max(rpm) | 3050 |
Flow at Nnom and Vg max (L/min) | 275 |
Power at Nnom, Vg max and ∆p = 400 bar (Kw) | 183 |
Filling capacity of housing(L) | 1.2 |
Mass approx.(Kg) | 53 |
Detailed Images
Size Information
Table of values
Size | 71 | 90 | 110 |
Displacement (cc) | 71 | 90 | 110 |
Speed maximum at Vg max (rpm) | 3,300 | 3,050 | 2,850 |
Power(Kw) | 156 | 183 | 273 |
