A4VG180HD3DMT1-32L Variable Displacement Axial Piston Pump for Standard Applications
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
| Certification: | ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $1,234.00/sets >=1 sets |
|
Detail Information |
|||
| Warranty: | 1 Year | Showroom Location: | None |
|---|---|---|---|
| Pressure: | Hydraulics | Structure: | Standard |
| Weight: | 32 | Power: | 79Kw |
| Dimension(L*W*H): | Standard | Displacement: | 28cm³ |
| Pump Type: | PISTON PUMP | Product Name: | Fucheng |
| Application: | Industrial Machinery | Material: | Cast Iron |
| Color: | Customer's Request | Delivery Time: | Payment |
| Packing: | Pallet Wooden Cases | Package: | Neutral Package |
| MOQ: | 1 Piece | Usage: | Hydraulic Drive Field |
Product Description
Product Description
Features:
– Variable displacement axial piston pump of swashplate design for hydrostatic closed circuit transmissions – Flow is proportional to drive speed and displacement and is infinitely variable – Output flow increases with swivel angle from 0 to its maximum value – Swivelling the pump over centre smoothly changes the direction of flow – Availability of a highly adaptable range of control and regulating devices – The pump is equipped with two pressure relief valves on the high pressure ports to protect the hydrostatic transmission (pump and motor) from overloads – These valves also function as boost inlet valves – An integral auxiliary pump serves as boost and pilot oil pump – The maximum boost pressure is limited by a built-in boost pressure relief valve – The integral pressure cut-off is standard
Displacement (cc) | 28 |
Speed maximum ,at Vg max(rpm) | 4250 |
Flow at Nnom and Vg max (L/min) | 119 |
Power at Nnom, Vg max and ∆p = 400 bar (Kw) | 79 |
Filling capacity of housing(L) | 0.9 |
Mass approx.(Kg) | 29 |

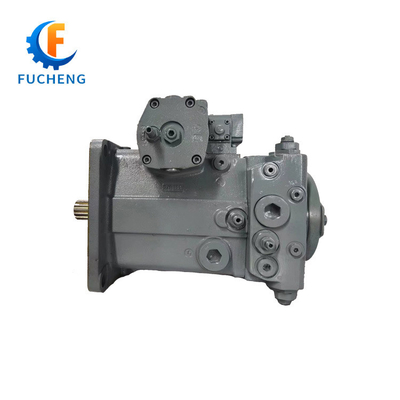

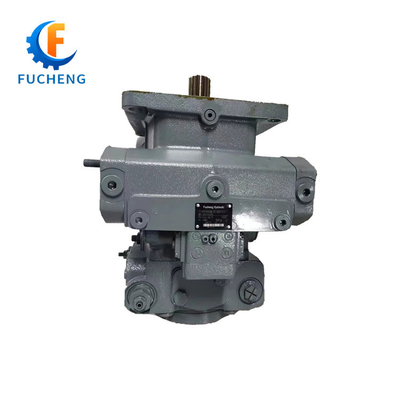

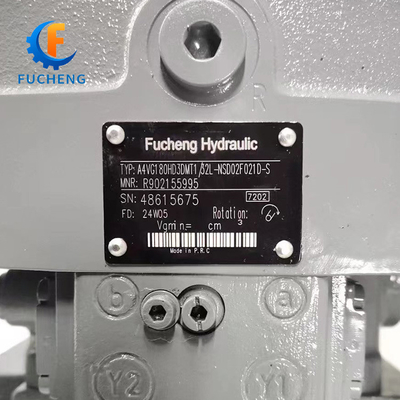

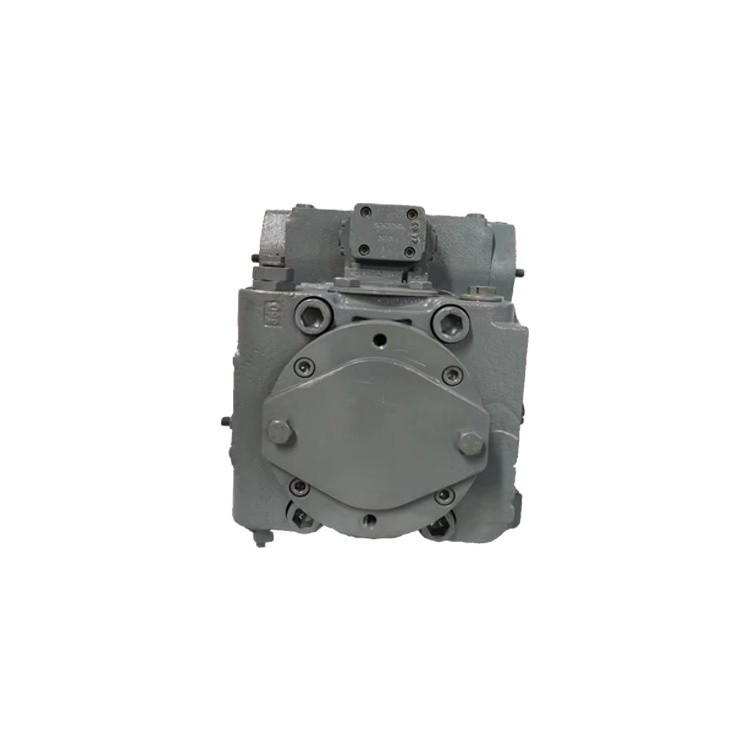

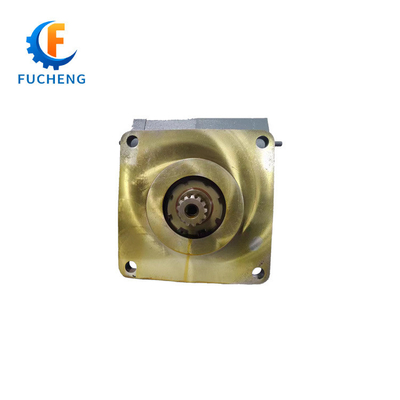

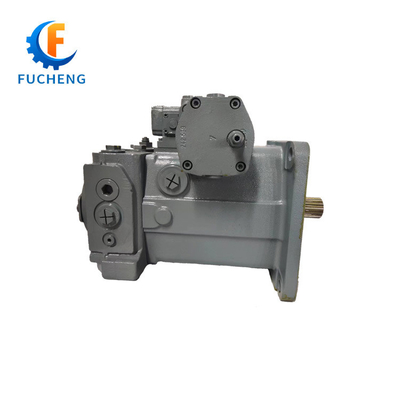

Detailed Images
Size Information
Table of values
Size | 40 | 56 | 71 | 90 | 125 |
Displacement (cc) | 40 | 56 | 71 | 90 | 125 |
Speed maximum at Vg max (rpm) | 4,000 | 3,600 | 3,300 | 3,050 | 2,850 |
Flow(l/min) | 160 | 202 | 234 | 275 | 356 |
