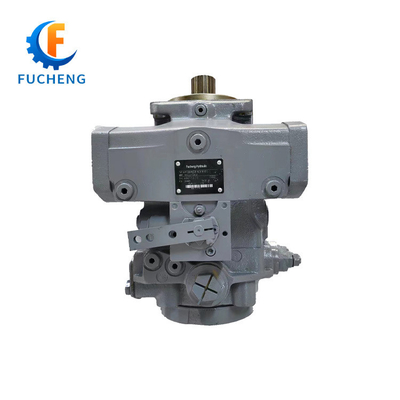

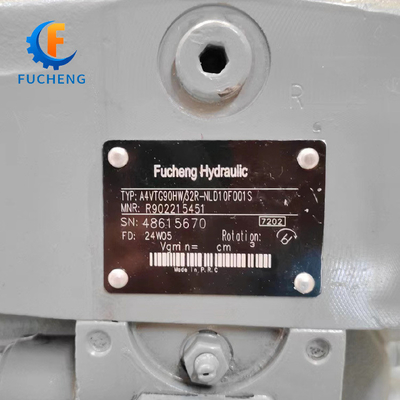

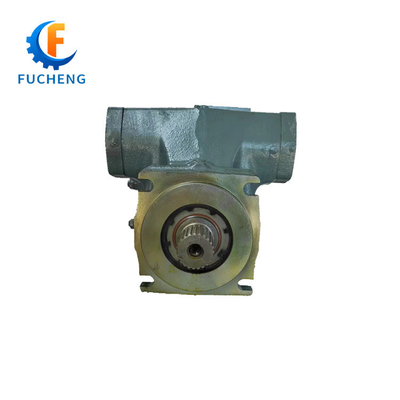

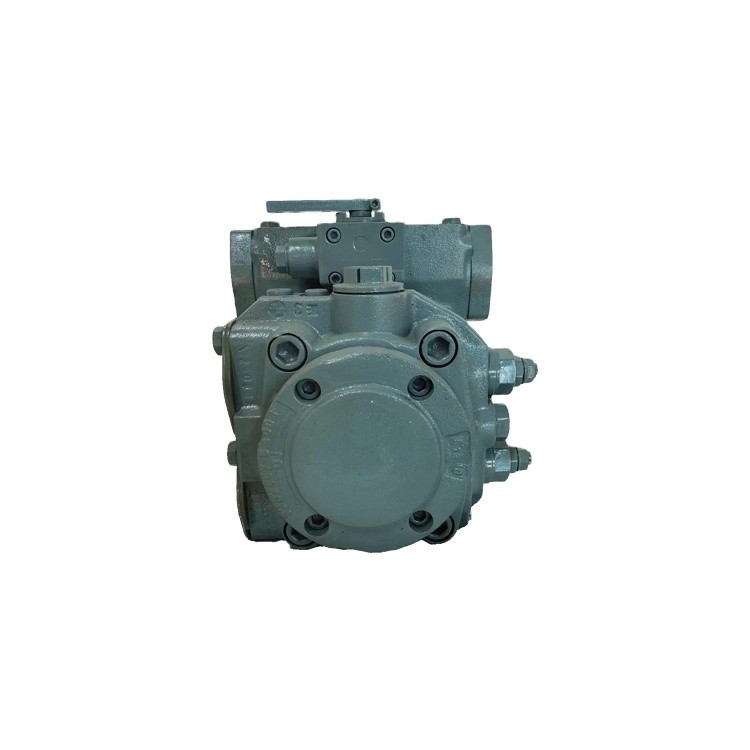

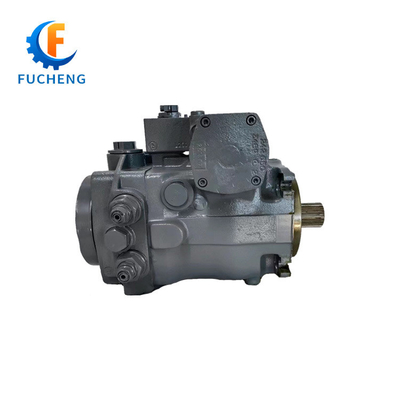

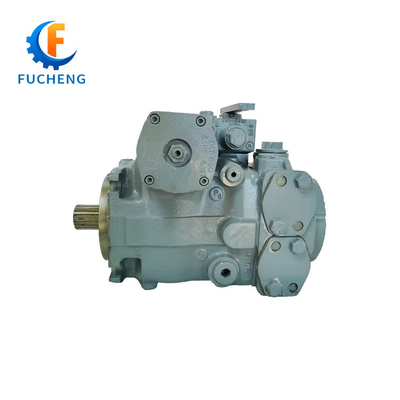

79Kw Axial Piston A4VTG90HW/32R-NLD10F001S Concrete Mixer Pump for Standard Applications
Product Details:
| Place of Origin: | Shandong, China |
| Brand Name: | Fucheng |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | $865.00/sets 1-4 sets |
|
Detail Information |
|||
| Warranty: | 1 Year | Showroom Location: | None |
|---|---|---|---|
| Pressure: | Hydraulics | Structure: | Standard |
| Weight: | 34 | Power: | 79Kw |
| Dimension(L*W*H): | Standard | Displacement: | 28cm³ |
| Pump Type: | PISTON PUMP | Product Name: | Fucheng |
| Application: | Industrial Machinery | Material: | Cast Iron |
| Color: | Customer's Request | Standard Or Nonstandard: | Standanrd |
| Delivery Time: | Payment | Packing: | Pallet Wooden Cases |
| Package: | Neutral Package | MOQ: | 1 Piece |
| Usage: | Hydraulic Drive Field | ||
Product Description
Product Description
Features:
--Variable axial piston pump of swashplate design for hydrostatic closed circuit transmission --Flow is proportional to drive speed and displacement and is infinitely variable
--Flow increases with the swivel angle of the swashplate from 0 to its maximum value
--Flow direction changes smoothly when the swashplate is moved through the neutral position
--Two pressure-relief valves are provided on the high pressure ports to protect the hydrostatic
transmission (pump and motor) from overload
--The high-pressure relief valves also function as boost valves
--The integrated boost pump acts to replenish leakage and provide control oil.
--The maximum boost pressure is limited by a built-in boost-pressure-relief valve .
--The high-pressure relief valves also function as boost valves
--The integrated boost pump acts to replenish leakage and provide control oil.
--The maximum boost pressure is limited by a built-in boost-pressure-relief valve .
Displacement (cc) | 90 |
Speed maximum ,at Vg max(rpm) | 3050 |
Flow at Nnom and Vg max (L/min) | 275 |
Power at Nnom, Vg max and ∆p = 400 bar (Kw) | 183 |
Filling capacity of housing(L) | 1.2 |
Mass approx.(Kg) | 53 |
Detailed Images
Size Information
Table of values
Size | 71 | 90 | 110 |
Displacement (cc) | 71 | 90 | 110 |
Speed maximum at Vg max (rpm) | 3,300 | 3,050 | 2,850 |
Power(Kw) | 156 | 183 | 273 |
Related Products
Packing&Shipping
Company Introduction
Jinan Fucheng Hydraulic Equipment CO., Ltd is a professional company integrated with manufacture, trade, and technical service for hydraulic product, we focus on good quality, better service, reasonable price and supply comprehensive proposal, including free maintenance and consultant. Our customers are from industries of mixer truck, underground loader, combine harvester, marine machinery, concrete pump truck, coal mine machinery, road paver, roller, harbor machinery, oil exploration machinery, rotary driller etc. Main business range: A10VSO, A4VSO, A7V0, A11VO, A4VG, A6VE, A2FE, A6VM, A2FM, A2FO, A6V, A7V, A8V etc.PV20-24,MF20-24,90R55,90R75,90R100,90M55,90M75,90M100 K3V63/112/140/180DT/DTP, K5V80/140/200DT/DTH Gear pump: 0PF1PF1.5PF2PF2.5APF3PF3.5APF constant gear pump, sundstrand pump, wood splitter pump, cater pump, PTO gear pump, and high precision shunt motor, multiple directional valves. Spare parts of Piston pump and motor: Bosch Rexroth, Kawasaki, Linde, SAUER, Eaton, Vikers, Komatsu, Cater etc.
FAQ
Q1: I want to buy your products, how can I pay? A :You can pay via T/T , WEST UNION or other payment terms we reach agreement. Q2: How can you guarantee the quality? A: One year's warranty against B/L date. Q3: If we don't find what we want on your website, what should we do? A: You can email us the descriptions and pictures of the products you need, We will check whether we can make it. Q4: Can we buy 1 pc of each item for quality testing? A: Yes, we understand quality test is important and we are glad to send 1pc for quality testing. Q5: What is the lead time? A: For this product, normally 3 days,3 days and lead time is calculated from the day we receive your deposit.
